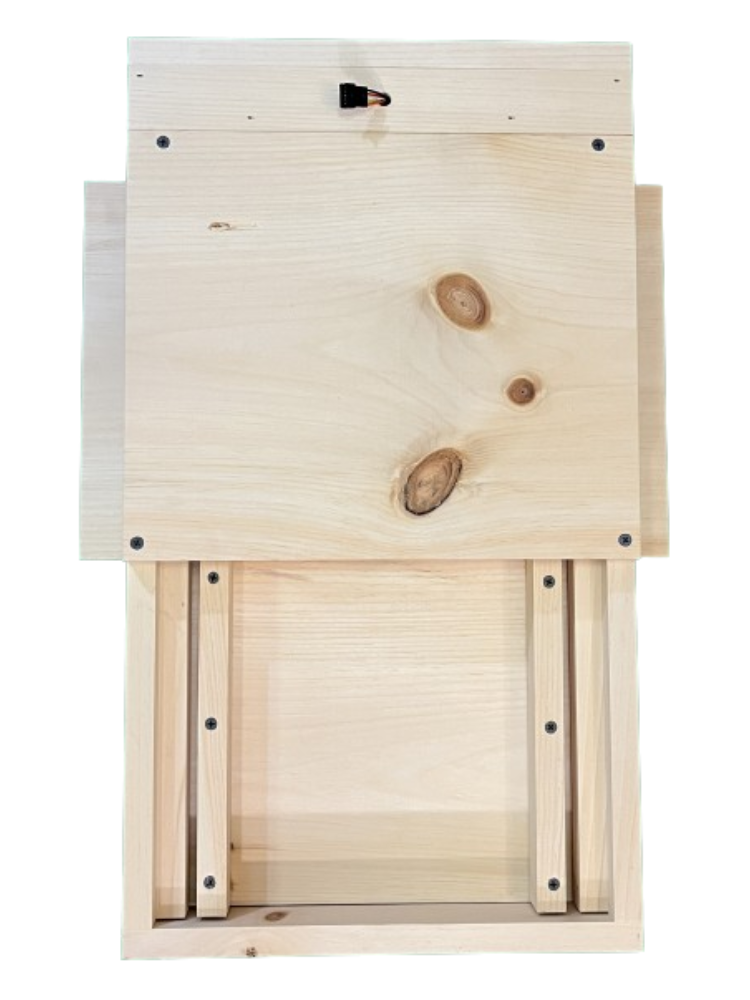

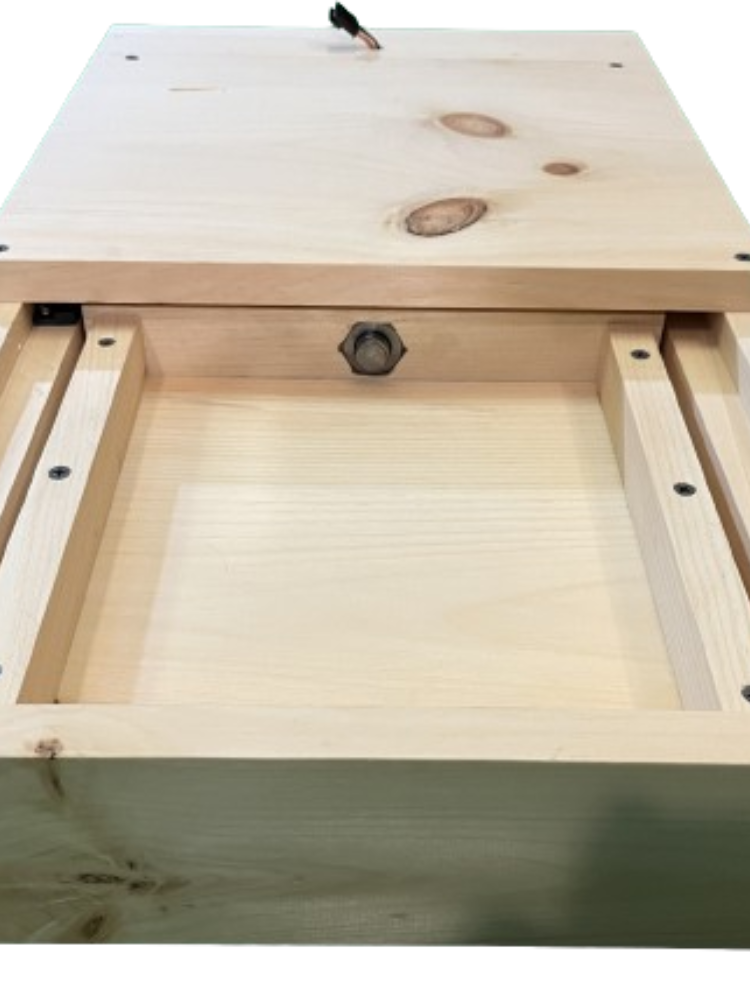

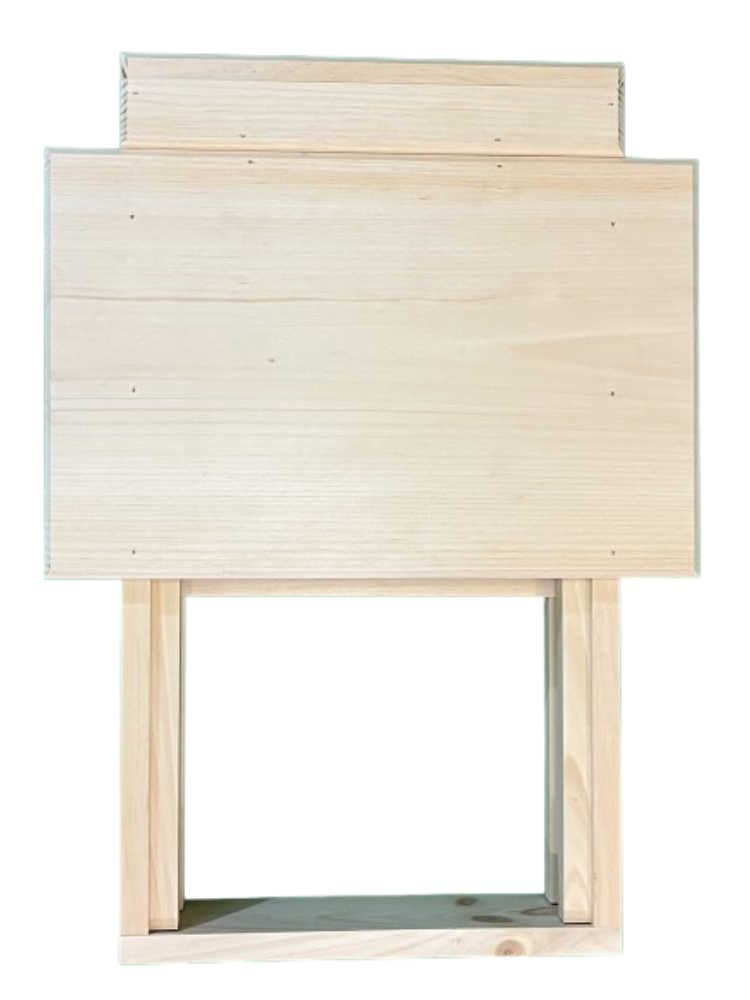

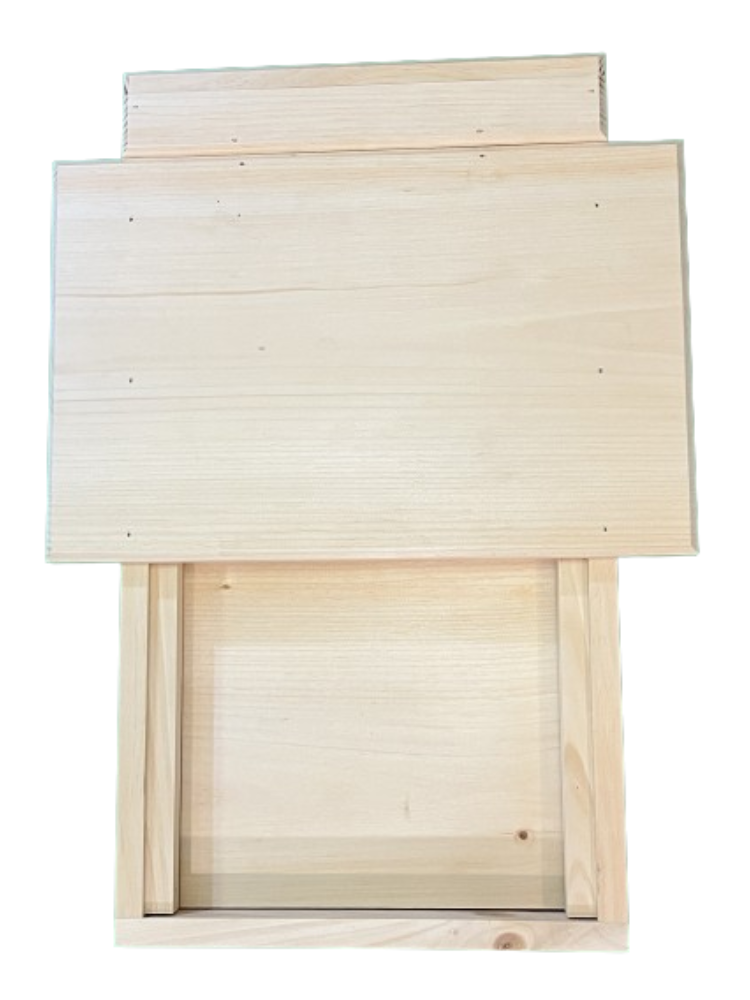

Standard Coop Tender Chicken Coop Door - Without Controller, 10x10

Effortlessly automate your chicken coop with our fully assembled door. Made with durable solid wood and a 5/8 inch steel worm drive, it's built to last. Use your own controller or design one to integrate with our solid-state magnetic limit switches and high-torque gear motor. Keep your feathered friends safe and secure with ease.

• 10" Wide x 10" High door opening.
• Suitable for small to average-size chicken breeds:
  Easter Eggers, Marans, Wyandottes, and Orpingtons.
• Constructed with Solid Indoor / Outdoor rated 1-inch boards - no plywood.

• Treated with Rain Guard non-toxic wood sealer.
• High-torque gear motor - Installed
• Solid Steel Acme Threaded Screw / Worm Drive - Installed
• Solid State Magnetic Limit Switches - Installed

This door does not include a door controller. Below is a schematic diagram which shows how to connect your door controller to the connector wiring for the motor and limit switches:

Your door controller will need to handle power to the motor to open and close the door.

• Motor Operating Current: 300 milliAmps (0.3 Amps)
• Max motor current (deadlock): 1,200 milliAmps (1.2 Amps)

Door controller will need to be capable of providing sufficient current to power the motor and should also limit current to prevent overheating of the motor windings, leading to motor failure.
