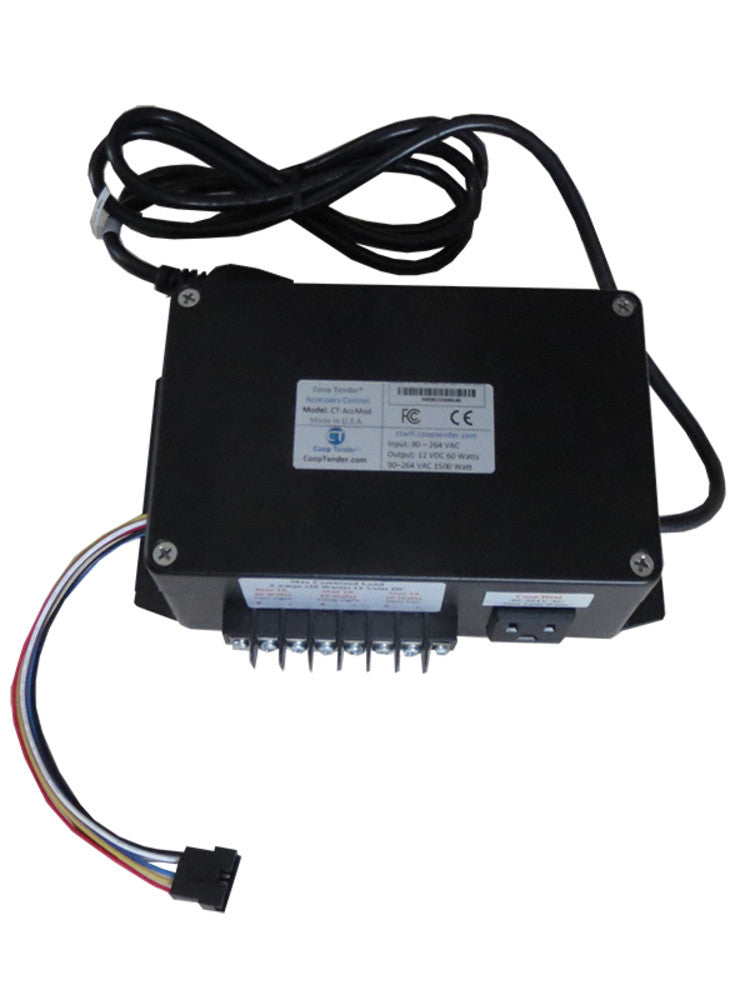

Automatically controls two sets of lights, ventilation, and heat in your coop. Connects through the Coop Tender Internet Wi-Fi Module to allow full control of your coop accessories through the Internet!

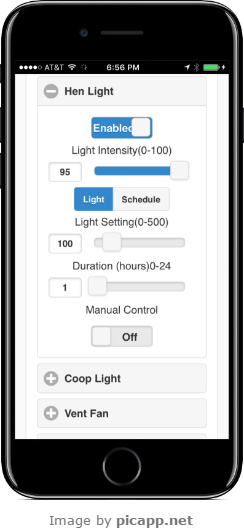

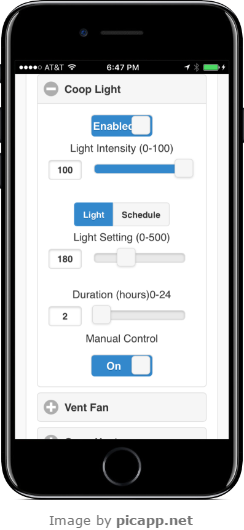

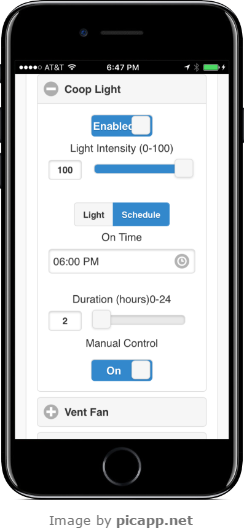

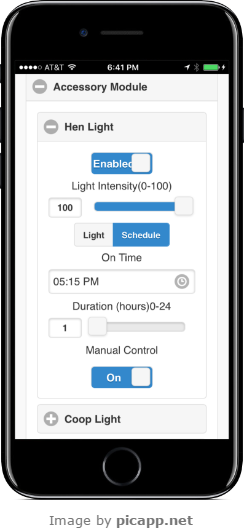

Each light automatically switches on based on the ambient light value reported by Coop Tender or by Schedule. The light stays on for the duration set in the web app.
Controls ventilation fan power when coop temperature is too warm giving your hens the comfort they deserve.

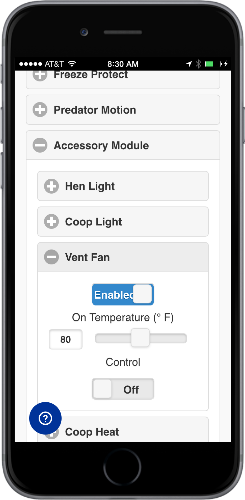

Ventilation fans are automatically turned on when the coop temperature rises above the temperature configured via the CT Internet Wi-Fi Web App.
Controls up to 1500 Watts AC electric heaters or water deicers to protect your livestock from dangerously freezing temperatures in the winter.

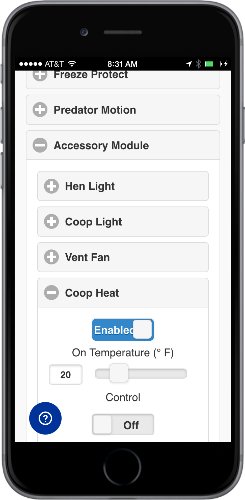

Heat is automatically turned on when the coop temperature falls below the temperature configured via the CT Internet Wi-Fi Web App.
100% solid state - no mechanical relays which are pone to failure over time are used.
|
Dimensions |
7 1/2” L x 4” W x 2 1/2” H |
| Case material | Industrial Aluminum |
|
Input Voltage |
90-264 Volts AC |
|
Output Voltage |
12 Volts DC (LIght and Fan Control) 90-264 Volts AC (Heat Control) |
| Max Light Circuit Power | 10 Watts / 1500 mA per circuit @ 12 VDC |
| Max Vent Fan Power | 10 Watts / 1500 mA @ 12 VDC |
| Max Heater Power | 1500 Watts / 10 Amps @ 120 VAC |
Accessories are not included
Each light circuit can drive 10 Watts of 12 Volt LED lighting. These lights generally have a light output comparable to a 50 to 100-watt halogen bulb. No need to worry about the light being too bright as you may dim the light through the Accessory Control Module settings in the CT Wi-Fi Web App.
Fans can be a little tricky to choose. Choose a fan that provides good air flow for the amount of power they use. You can hook up at least two of these fans to the Accessory Control Module's Vent Fan circuit - up to four of the 72.3 CFM fans!
You may use any AC Electrical Powered Heater(s) with a maximum combined power of 1,500 Watts (about 10 Amps).
