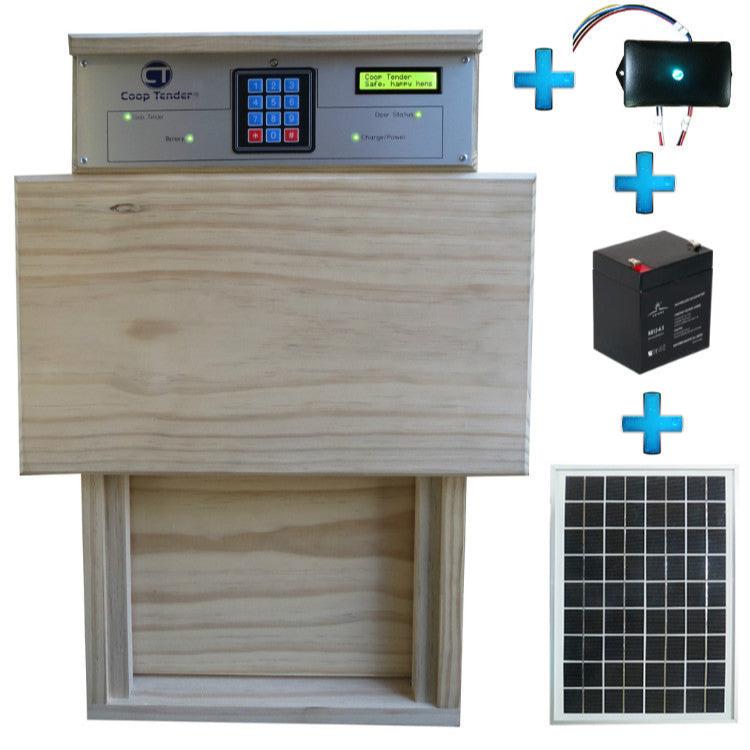

Standard Automatic Chicken Door + Internet Wi-Fi + Solar Bundle

$503.47
$503.47

Description:

Introducing the ultimate solution for keeping your feathered friends safe and sound: the Standard Automatic Chicken Coop Door with a 10"x10" door opening. Designed to accommodate standard-sized chicken breeds including Easter Eggers, Marans, Wyandottes, and Orpingtons.
  • Automatically Opens and Closes Your Coop Door with three modes of operation: Dawn-to-Dusk, Schedule, or Manual.
  • Energy Efficient: Consumes less than 4 watts when plugged into a standard electrical outlet.
  • Programmable Freeze Protect - door stays closed when it's dangerously cold outside, working to protect your poultry investment. The Microcontroller digital control eliminates frozen mechanical components in winter.
  • Solid indoor/outdoor rated lumber construction - Treated with Rain Guard non-toxic wood sealer.
  • This Large Automatic Chicken Door comes fully assembled and is easy to install!
  • 100% predator-proof!  Have peace of mind knowing that your hens are safe at night. Raccoons, cougars, bobcats, mink, coyotes, opossums, skunks, or other nighttime predators cannot open the door. While this door doesn't include an automatic stop sensor, rest assured it has been engineered for predator-proofing. The sturdy, seamless closure helps prevent predators from prying their way into the coop, giving you peace of mind that your chickens are protected.
  • At-A-Glance Status LED Lights make it easy to check the status of your coop door from a distance in the dark.

Included in your Standard Automatic Chicken Door Solar Wi-Fi Bundle:

  • Automatic Coop Door Controller

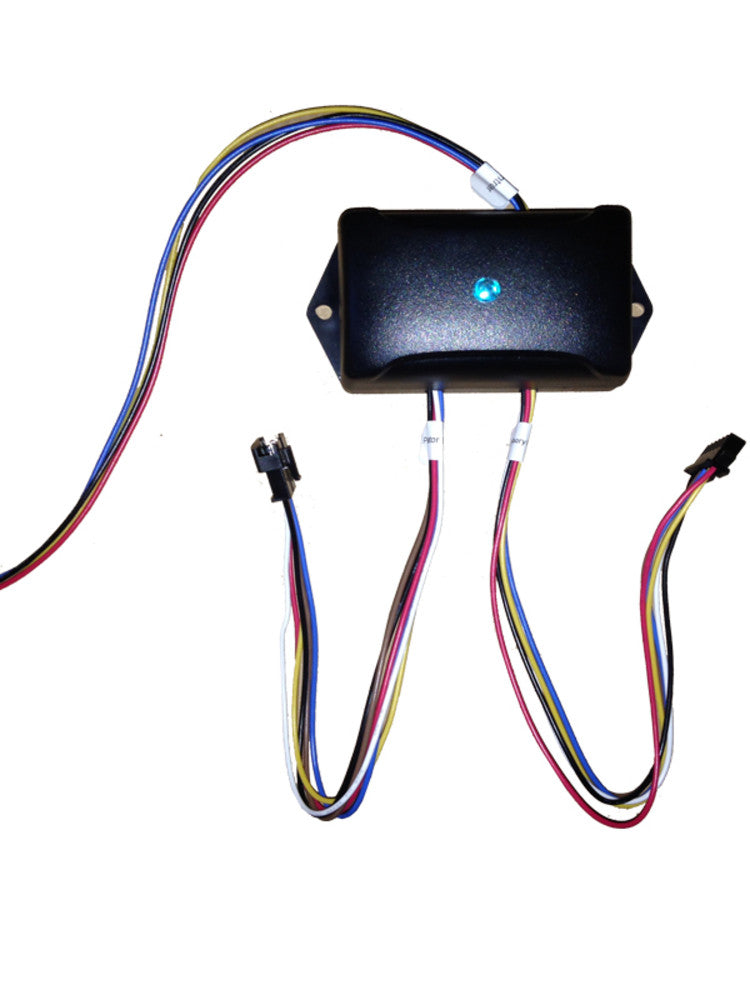

  • Internet Wi-Fi Module
  • 1-Year Cloud Service Subscription

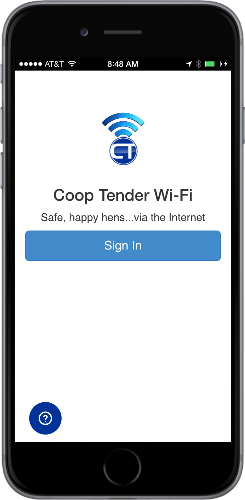

  • Universal Web App™
  • 12 Volt 5 Ah SLA Coop Door Solar Battery
  • Solar Panel
  • Coop Door and Frame
  • Weather Proof Temperature Module
  • IEC AC Power Cord
  • Mounting Screws (4 2-inch galvanized wood screws)

Requirements:

  • A Cloud Service Subscription. A one-year subscription is included with purchase.


Standard 10"x10" Automatic Chicken Door Specifications:

Input Voltage

85 - 264 Volts AC (Electric Operation)

12 - 19 Volts DC (Solar Operation)

AC Power consumption

1 Watt

DC Power Consumption (idle)

40mA @ 12VDC

DC Power Consumption (power save mode)

20mA @ 12VDC

DC Power Consumption (chicken door opening or closing)

150mA-300mA @ 12VDC

Max Charging Power

600mA

Coop Cutout

 13 1/2 inches wide x 26 1/2 inches high

Coop Door Opening

10 inches wide x 10 inches high

Material
  • Solid Indoor/Outdoor rated lumber treated with non-toxic wood sealer.
  • Brushed aluminum metal faceplate
  • 5/8 inch Solid steel Acme threaded screw drive

Drive mechanism

Solid steel worm / screw drive

DC motor

12 Volts

Door opening time

~1 minute

Door closing time

~1 minute

Operating temperature

-20 to +185 ℉
